Keywords

• Variable rate application techniques
• Drift reduction practices
• GPS
• Nozzle selection control
• Precision farming
• Dose calculation
• Reduction of surface water contamination
• Nozzle design
• Reduction of PPP use
• Map based application technologies
• Spray boom

Description

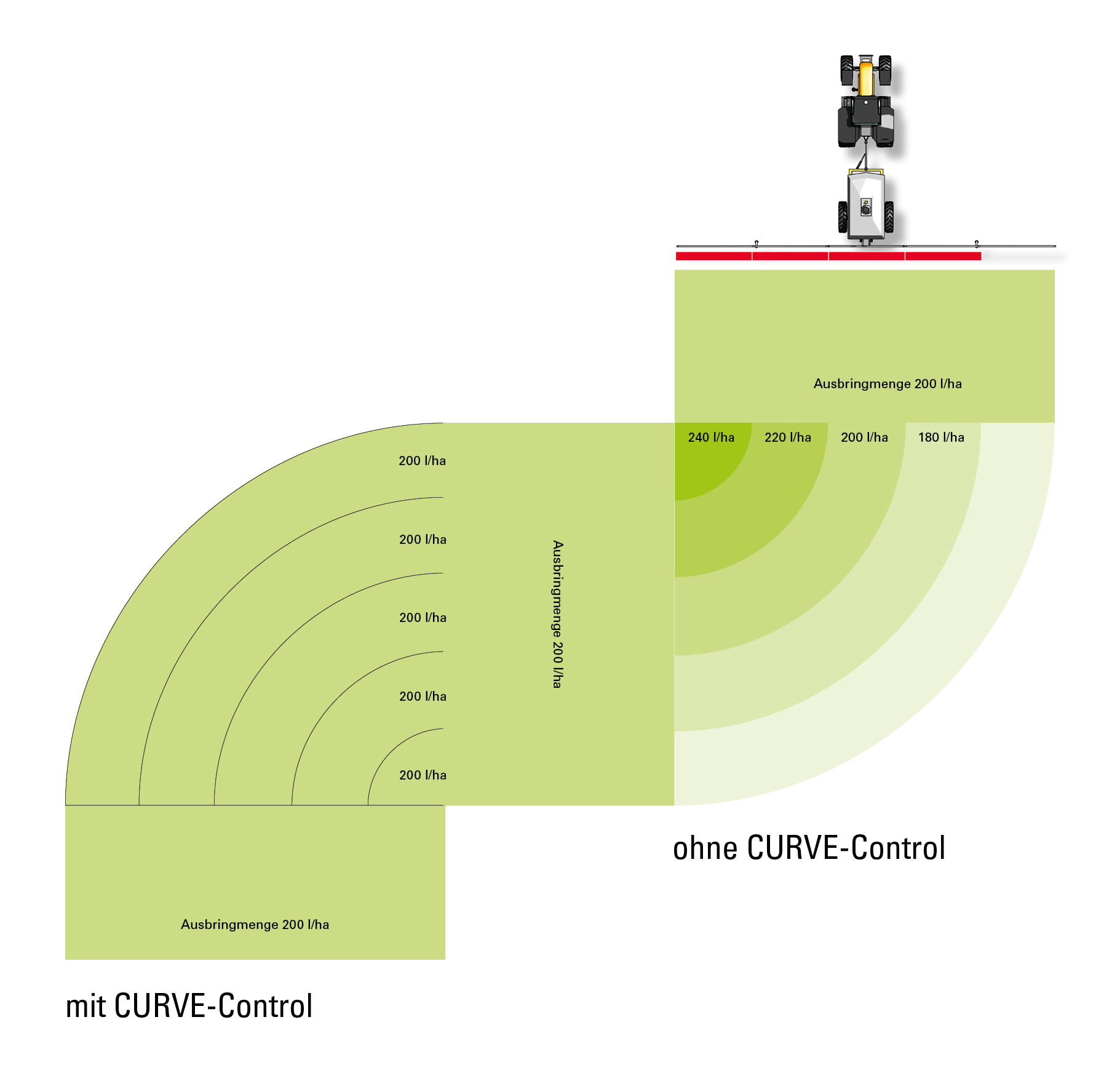

When driving in curves with the sprayer, it ensures a constant application rate both in the outer and inner areas. It is possible by switching different nozzle combinations on each section by a switchable multiple nozzle holder and VARIO-SELECT. Using a GPS receiver, terminal transmits the precise position of the boom to the field sprayer job computer which determines the speed and the curve radius by means of sensors and calculates the corresponding application rate per section. The system automatically adjusts the rate on each section by switching different nozzle combinations.

Details

Manufacturer

Müller-Elektronik GmbH & Co. KG

City

Salzkotten

Country

Germany

Number of Employees

251-+

SETA Specifications

Cropping Systems

Arable Crops, Open field vegetables,

Operation Type

• Plant Protection Product application

Effects

• Optimize the precision of spraying (ex : Tools for sprayer adjustment, Spraying performance assessment, etc.)
• Mitigate diffuse sources of pollutions (ex : all kinds of Drift Reducing Technologies: recycling panels, nozzles innovation, adjuvants, sprayer’s architecture)
• Productivity (crop yield per ha)
• Pesticide use
• Number and/or severity of accidents resulting in spills, property damage, incorrect application of fertiliser/pesticide, etc.

Technology Type

• Reacting
• Variable Rate
• Software
• Hardware
• Component

Crop Sprayer Types

• Horizontal boom sprayers

TRL

TRL 9 – Full commercial platform

Find out more

Website

https://www.mueller-elektronik.de/en/products/curve-control/

Audio/Visual Material

https://www.mueller-elektronik.de/wp-content/uploads/ME-Pflanzenschutz-2018-04-EN.pdf
